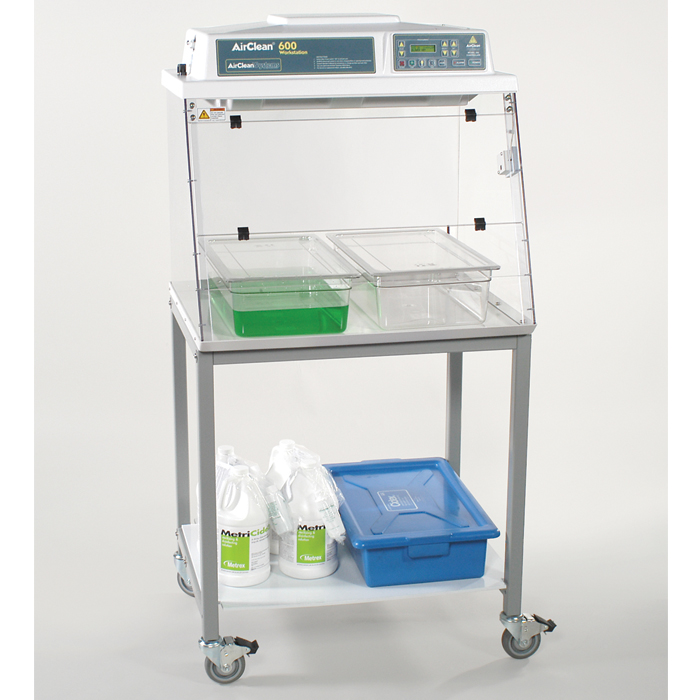

AC600 Endoscopy Workstation

Mobile operator protection from disinfectant fumes

Featuring the AirSafe Automatic Safety Controller
AirSafe

Request Quote

Application Worksheet

The AC600 Series endoscopy workstation is an economical and space-saving solution, providing technician protection from high-level disinfectant vapors. The AirSafe™ automatic safety controller maintains the user-set face velocity during endoscope reprocessing, while additionally monitoring airflow and filter conditions. Multiple sizes and a small footprint allow this product to fit on virtually any countertop.

Features
AirSafe® automatic safety controller
Integral base with deep spill lip
No ductwork required
No installation required - plugs directly into a standard 110V or 220V electrical outlet
Extremely quiet operation < 49dBA
Lab event timer
Gas phase bonded carbon filtration
Benefits
Filter safety lockout to ensure correct filter replacement
Meets OSHA and JCAHO regulatory requirements
Protects operator from Glutaraldehyde, O.P.A., Cidex®, Hydrogen Peroxide or Peracetic Acid fumes
Electronic gas detection for real-time gas phase filter monitoring
Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
Meets AAMI/ANSI ST 58 standard
Brushless, sparkless blower is post-filter
Deep base effectively contains accidental spills
Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
Low airflow alarm warns the user both visually and audibly
Options
Sturdy cart/trolley with locking casters for mobility
Fluorescent lighting optional on all 32" width workstations; standard on 48" workstations
GlutAway™ waste pump for transferring disinfectant and rinse water to waste
Soaking pans with lid
Hard surface disinfectant
Product # External
Width Depth Height
AC632C 32" 24" 30"
AC648C 48" 24" 32"
Product # Internal
AC632C 31" 23" 22"
AC648C 47" 23" 22"

How it Works

  • A

    Room air flows away from the operator and enters the enclosure in a horizontal pattern.

  • B

    Room air mixes with both lighter and heavier gases.

  • C

    Contaminated air is directed through the filtration bed.

  • D

    Clean air is recirculated into the room.

Air Flow Diagram
