Vertical Laminar Flow Workstation

Vertical Laminar Flow Workstation Vertical Laminar Flow Workstation Vertical Laminar Flow Workstation
Vertical Laminar Flow Workstation

Compact and portable ISO 5 airflow

Featuring the UVTect Automatic Safety Controller
UVTect

Request Quote

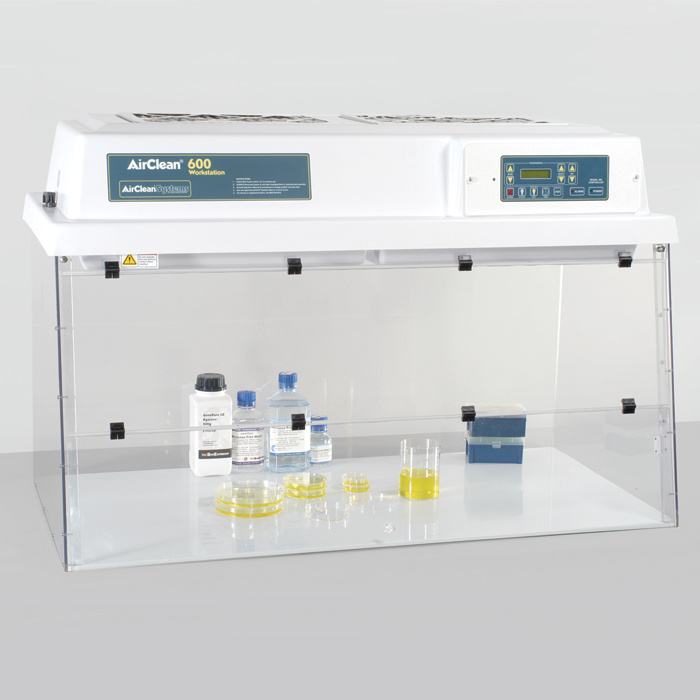

AirClean® Systems AC600 Series vertical laminar flow workstations are ideal for non-hazardous applications that require a clean work area. These compact, lightweight workstations provide positive-pressure, ISO 5 air throughout the chamber and sash opening, thus keeping airborne particulate away from sensitive applications. Given the small footprint and ease of installation (simply plug in the power cord), the AC600 Series vertical laminar flow workstations are an excellent choice for mobile ‘clean zones’ within your facility.

Features
No ductwork required
No installation required - plugs directly into a standard 110V or 220V electrical outlet
Clear polycarbonate shell for 360° visibility
Available in standard height or tall version
Polypropylene construction for chemical resistance. The result: NO RUST
UVTect™ microprocessor controller
ISO 5 vertical laminar flow air
Lab event timer
Integral fluorescent lighting
Benefits
Filter safety lockout to ensure correct filter replacement
Shipped fully assembled
Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1
Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
ISO 5 tested
Real time monitoring of installed filtration bed
Options

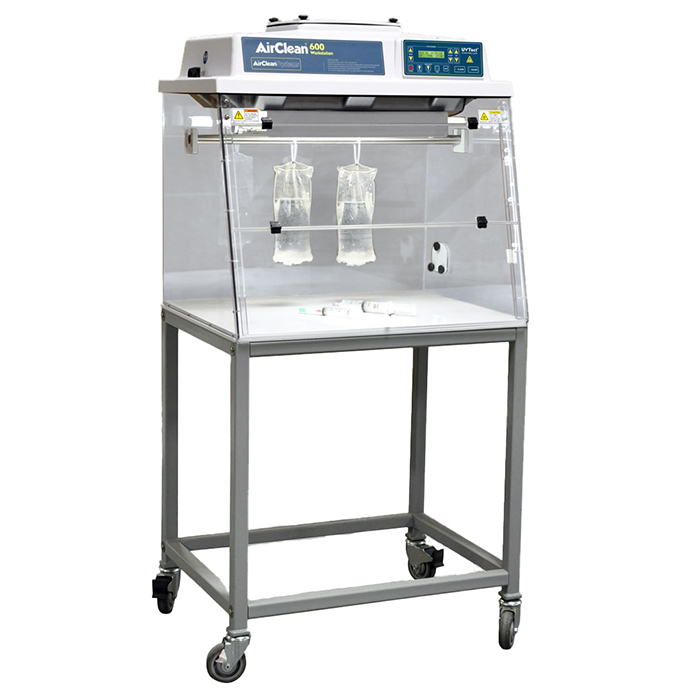

Sturdy cart/trolley with locking casters for mobility
Access port for electrical cords
ULPA filter
IV bar
Polypropylene laboratory sinks
Product # External
Width Depth Height
AC624LF 24" 24" 30"
AC632LFC 32" 24" 30"
AC632TLFC 32" 24" 39"
AC648LFC 48" 24" 32"
AC648TLFC 48" 24" 40"
Product # Internal
AC624LF 23" 23" 18"
AC632LFC 31" 23" 18"
AC632TLFC 31" 23" 27"
AC648LFC 47" 23" 18"
AC648TLFC 47" 23" 29"

How it Works

  • A

    Room air enters and is cleaned via electrostatic pre-filtration

  • B

    Air then moves downward through the HEPA filter.

  • C

    Clean vertical laminar flow air enters the chamber.

  • D

    Clean air is recirculated into the room.

Air Flow Diagram
